- Description
-
Tent roof
- Fully printable (digital printing)
- UV-resistant, brilliant and high-contrast colour reproduction, very good light fastness (6-7)
- Special colours possible
- Optionally available with tape-sealed seams: maximum weather protection, 100% waterproof
Tent walls
- 4 tent walls included
- Selectable wall variants: full wall, half-height wall, walls with doors and windows
-
Versions of solid walls, walls with doors and windows:

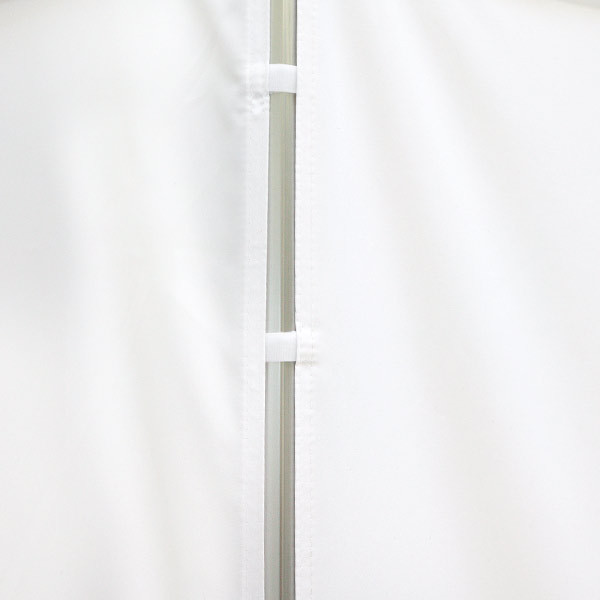

- hemmed all around, on the upper edge on both sides with velcro for attachment to the valance
- side edges each with 5 fastening loops or
- side edges each equipped with 5 fastening loops and zipper (high wind and weather protection) -
Half-height wall design:
- hemmed all around
- side edges with fastening loops -
Single-sided print:
- Design shows through in mirror image on the reverse side
- Wall attachment with the motif facing inwards or outwards
Note: when using multiple tent walls with zippers, the motifs can only be attached facing inwards or outwards.
Material
- Tent fabric: Polyestergewebe Variotex® Z SE
- Flame retardant (DIN EN 13501-1)
- Waterproof up to a water column of 2000 mm
- Can be cleaned with a damp cloth - Professional-grade tent fabric: extra schweres Polyestergewebe Variotex® S SE,
- Flame retardant (DIN EN 13501-1:2018)
- Waterproof up to a water column of 2000 mm
- Exceptionally robust and long-lasting
- Can be cleaned with a damp cloth
- Optional waterproof seams: 100% waterproof thanks to tape-sealed seams, top quality & added weather protection - Lamination:
without lamination: print without lamination must be handled carefully to avoid scratches, recommended for medium to long-term use
with lamination: additional protection through special protective lamination after printing - highest scratch resistance, dirt-repellent, particularly long durability; recommended for long-term use, use in frequently changing locations.
Frame
- High-quality aluminum frame
- Posts made of extremely stable octagonal profiles (top: ø 52 mm, bottom: ø 45 mm, wall thickness: 1.5 mm)
- Joint connectors made of robust, glass-fibre reinforced plastic (high-strength, weather-resistant, frost-proof)

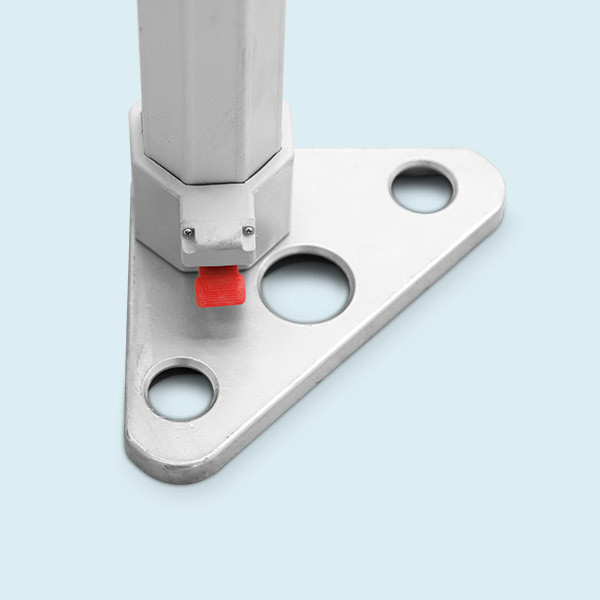

- Robust, stable feet made of aluminium
- Headroom height adjustable in 5 positions (189 cm, 197 cm, 205 cm, 213 cm, 221 cm)
- Particularly stable, foldable grid system, locking with lever
- Crank mechanism for fine adjustment and perfect tensioning of the roof
- Heights when used with walls (height adjustment level 3):
- Total height 335 cm
- Headroom height ca. 205 cm - Base surface 300 x 300 cm (9 m²)
- Weight (without print): 30 kg
- For transport and storage of folding tents, the tent roofs must always be removed from the frame.
- For every outdoor application, folding tents and folding gazebos must always be anchored to the ground.

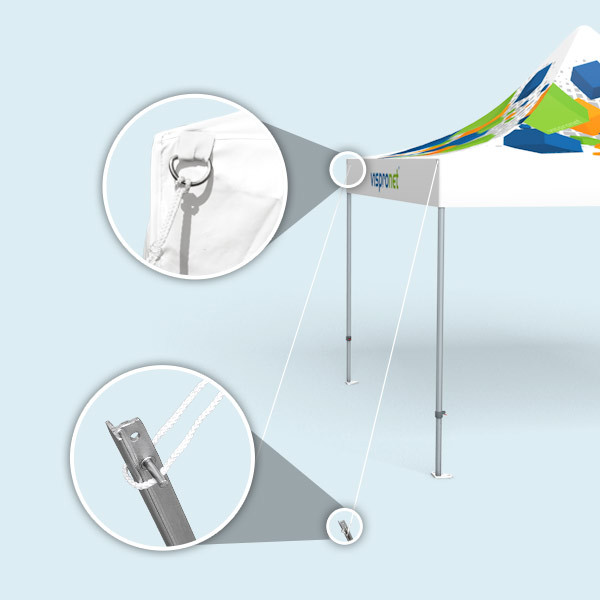

- For roof anchoring and stretching it is absolutely essential to use optionally available guy sets as well as stackable weighting plates, weights and ground hooks to stabilize the tent posts.
- Folding tents and gazebos are not suitable for long-term and unattended outdoor use.
- Gazebos / folding tents are not tested for wind and snow loads.
Accessories (optional)
Additional accessories such as holders for Bowflag® and flags, weight and base plates, trolley bags, and anchoring-sets can be found in our extensive accessory range for pop-up tents and gazebos.
